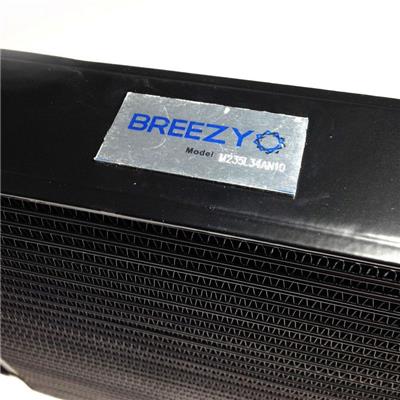

Radiateur huile BREEZY matrice 115mm 25 rangées DASH10 noir

(Code: radiateur11525)
125,90 €
2000g

  1. #Description#

    Radiateur huile BREEZY 25 rangées, matrice 115mm, connections: UNF-JIC 7/8"-14 (DASH10)





    Dimensions matrice 235mm:

    Epaisseur : 51mm

    Dimensions matrice 235mm (en mm)

    Nombre de rangées

    Hauteur hors connexions

    Connexions entrée/sortie

    Entraxe connexions

    Entraxe fixations

    Longueur totale

    7

    51

    Taraudage M12 x 150

    10

    77

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330

    13

    99

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330

    16

    123

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330

    19

    147

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330

    25

    193

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330

    34

    262

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330

    44

    347

    UNF-JIC 7/8''-14 (DASH10)

    248

    308

    330





    Dimensions matrice 115mm:

    Epaisseur : 51mm

    Dimensions matrice 115mm (en mm)

    Nombre de rangées

    Hauteur horsconnexions

    connexionsentrée/sortie

    Entraxeconnexions

    Entraxe fixations

    Longueur totale

    7

    51

    Taraudage M12 x 150

    128

    188

    210

    10

    77

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210

    13

    99

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210

    16

    123

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210

    19

    147

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210

    25

    193

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210

    34

    262

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210

    44

    347

    UNF-JIC 7/8''-14 (DASH10)

    128

    188

    210
